Product Description

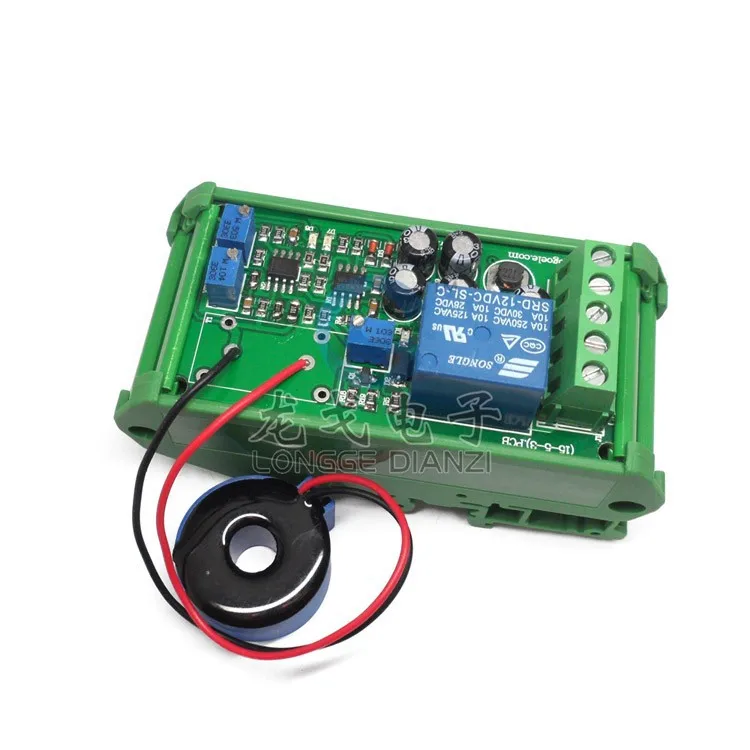

Product Name: AC current sensor module AC 0-50A full range of linear output
Product Overview: AC 0-50A full range of linear detector, with relay output.
Product parameters:
1, the module dimensions: 87mm X 40mm
2, working voltage: DC 24V
3, output: switch output
4, the current detection range: AC 0-50A
5, the set point is adjustable over-current signal, AC 0-50A full range of linear adjustable
6. Accuracy: 10 ‰

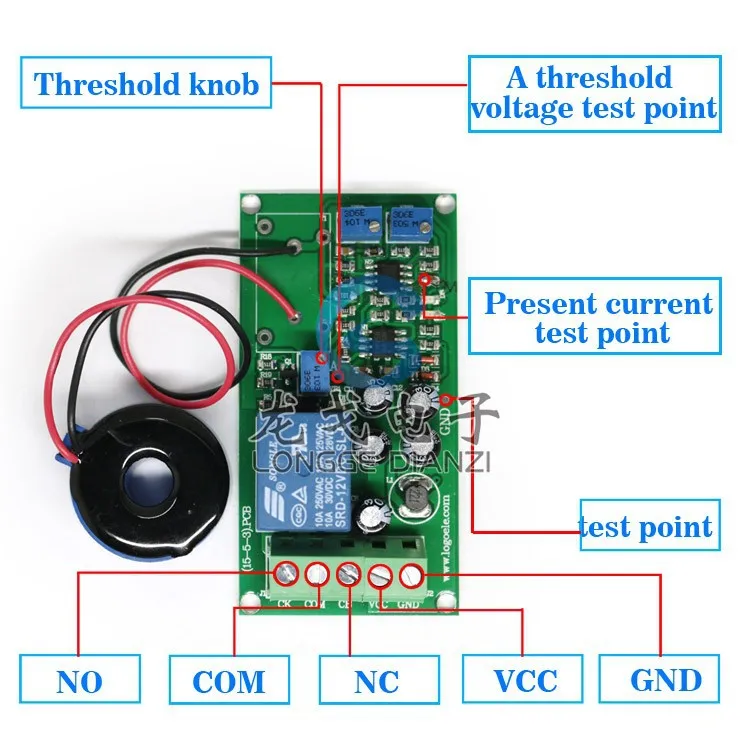

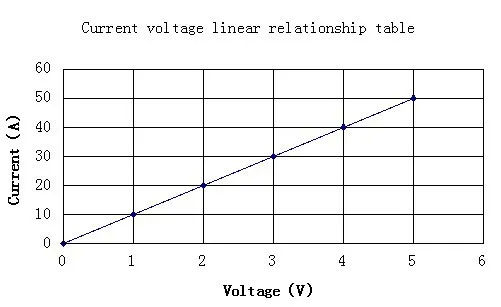

7, specific debugging method: measuring voltage threshold voltage test points, at this point, 0-5V voltage equivalent to current 0-50A.
1
8. In addition to the module above the threshold adjustment potentiometer outside the other two potentiometers prohibit transfers, the listener does not cause damage to the module, the restaurant is not responsible!
Provide instructions and product support after purchase.

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.09kg (0.20lb.)
  • Package Size: 13cm x 8cm x 9cm (5.12in x 3.15in x 3.54in)
