  • Place of Origin: China (Mainland)
Product Description

          Waiter Welcome to our Store Rose





If you are used to develop the product , be sure to choose us, our advantages are as follows :
1 . Power consumption.OurWIFIParameter module is powered3.3VPowered by,70mA-200mAPower consumption is far below normal marketWIFIModule.
2 . Design enhancements .Adopt a new4Layer design , compared to previous2Plates , stability and anti-interference ability , better quality !
3 .AP + STA Mode.AT + STACan coexist ,Meet most customer requirements.

4 .Various versions of software support.We offer our customers a variety of test software for free , such asPCClient software , Android software.
5 .Strong supply capacity.Never out of stock, long-term stability of bulk supply worries, long-term module1000Sets of inventory, less than2000Piece usually2Week delivery.
6 .Stable performance.OurWIFIModules have been listed a year , after a number of technical personnel improvements versions rapid iteration . Stable performance, stand the test of the market .
7 .Free and open .Full liberalizationSDK,apiComplete. You can achieve the aspirations of secondary development .
8 .FCC / CEAuthenticate.Module byFCC,CECertification,MACAddress has been burning inside the module , without the customer to pay for another .
WIFIModule Quality Assurance:

1,ByCEAndFCCAuthenticateThis is the electronic products into the EU and the United States access to proven , is a sign of quality products .

2After high and low temperature testing,-20-80Industrial Operating ambient temperature range.

3, Each with a specialized test equipment products are rigorously tested .



This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It\'s easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. This boost converter is an excellent match for DSO138 oscilloscope kit. It can be connected directly to the DSO138 motherboard(not included), make DSO138 oscilloscope to be a portable oscilloscope for better use.
Features:
DSO138 Kit:

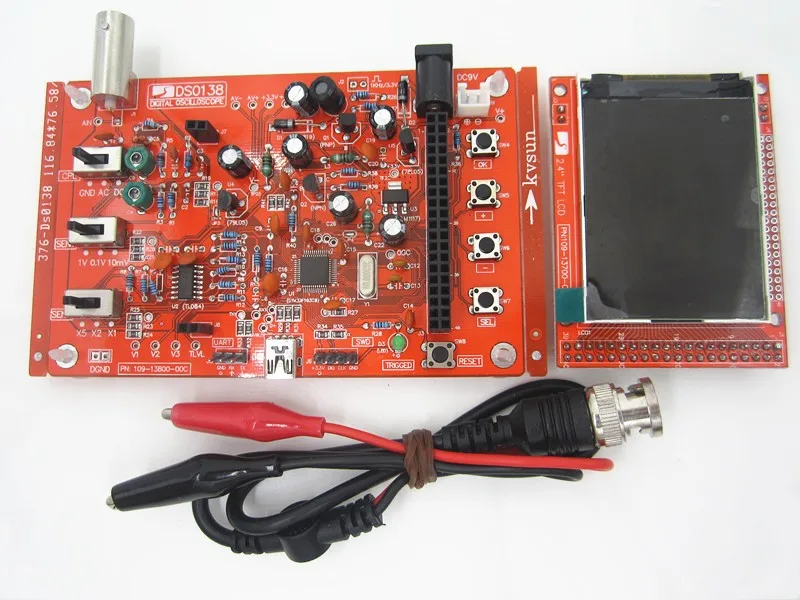

This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
Adjustable vertical displacement, and with instructions.
With automatic, regular and one-shot modes, easy to capture the moment waveform.
Available rising or falling edge trigger.
Observable previous trigger waveform (negative delay).
Can freeze at any time waveform display (HOLD function).
Comes 1Hz /3.3V square wave test signal source.
With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Waveform storage function: will not lose the waveform after power off.
Short-circuit and open-circuit detection: can help the user find out the soldering error.
TFT controller recognition function.

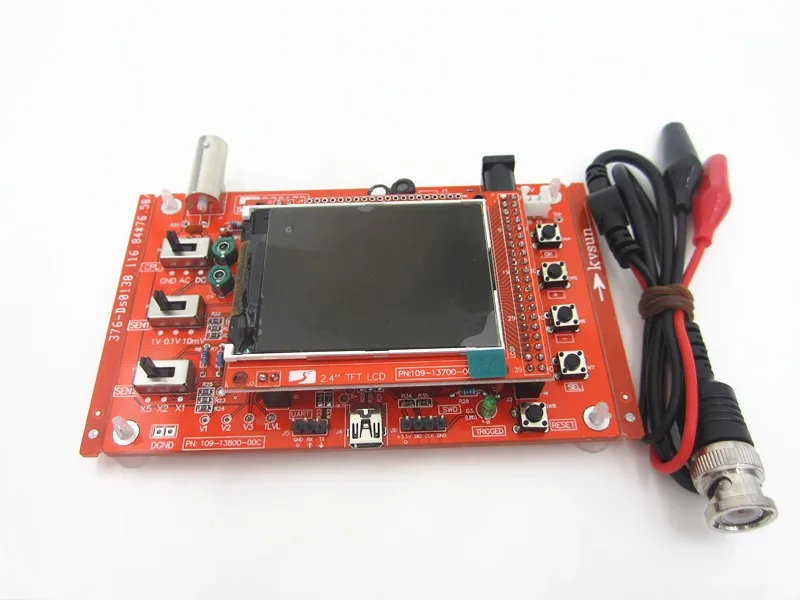

The SMD has been soldered, more suitable for electronic beginner.
Case:

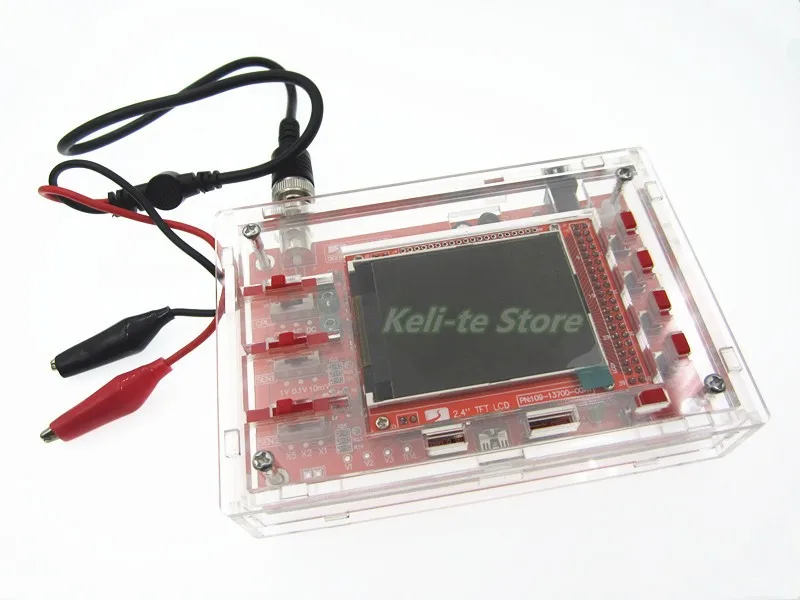

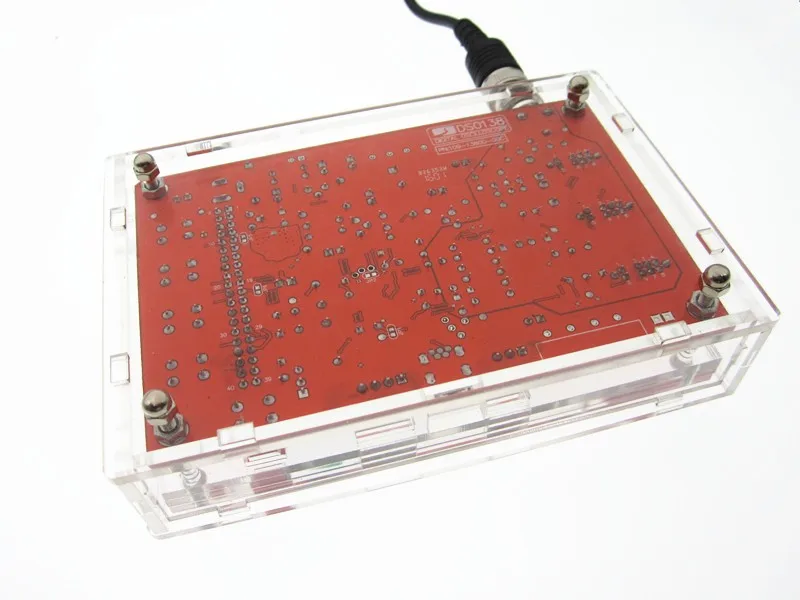

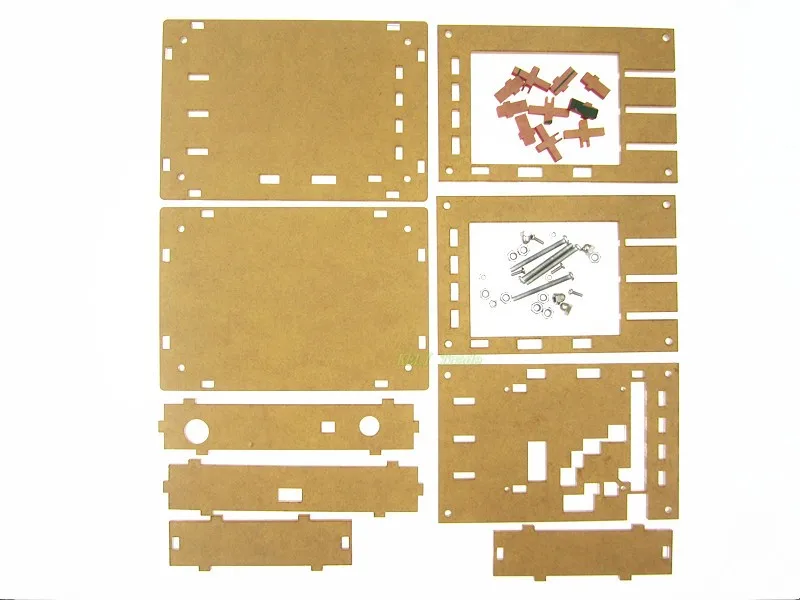

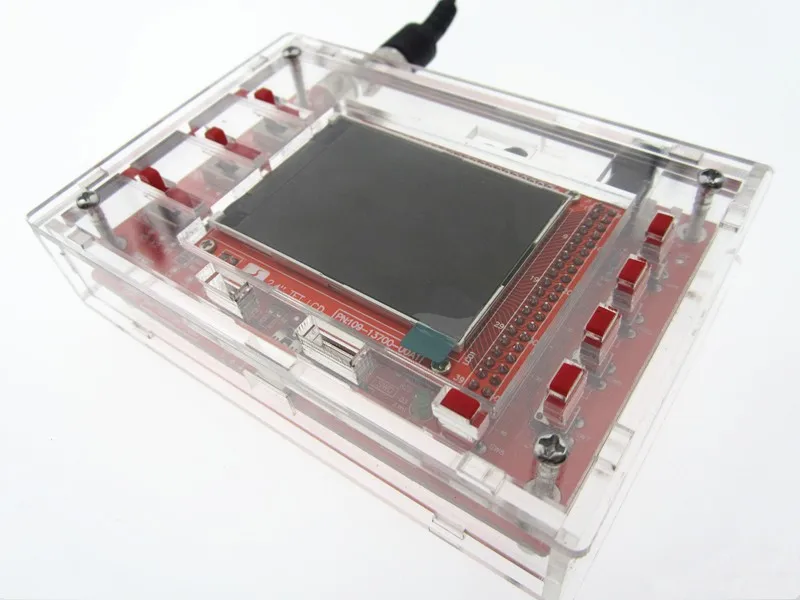

DIY cover for DSO138 oscilloscope.
Acrylic material, looks transparent(need to tear down the film).
Easy for electronic enthusiasts to assemble.
Specifications:
DSO138 Kit
Type:Soldered DIY Kit
Maximum Real-time Sampling Rate: 1Msps
Accuracy: 12Bit
Sampling Buffer Depth: 1024 bytes
Analog Bandwidth: 0-200KHz
Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
Input Impedance: 1M
Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling Modes: DC / AC / GND
The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
Supply Voltage: DC 9V
PCB Size: 117 * 76mm / 4.6 * 3in
Screen Size: 52 * 40mm / 2 * 1.57in
Package Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in
Package Weight: 119g / 4.21oz
Note:

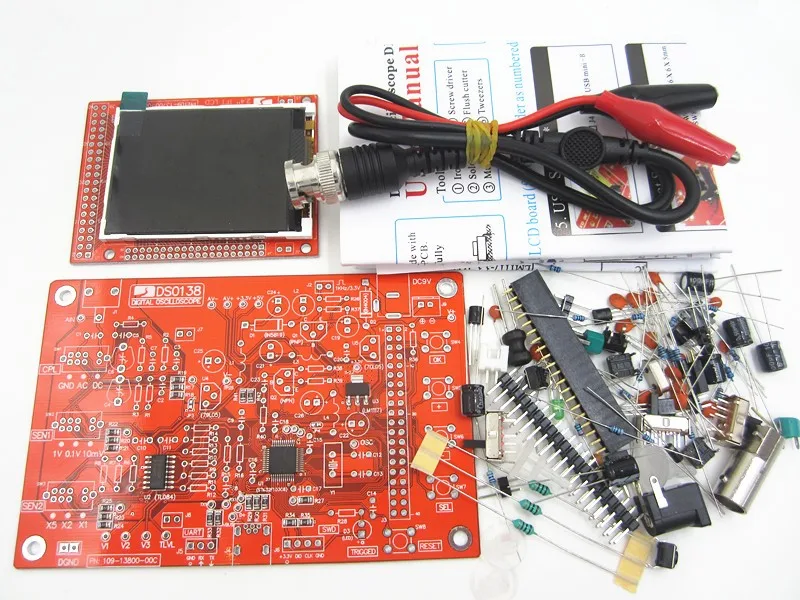

One oscilloscope DIY kit is all items are not soldered yet, the other kit has been soldered the SMD. Please choose what you like!
Case:
Material: Acrylic
Item Weight: 156g / 5.52oz
Package Size: 16 * 10 * 4cm / 6.3 * 3.94 * 1.57in
Package Weight: 192g / 6.79oz
Case Installation Instruction:
https://www.dropbox.com/s/6nleb8lviv4oeia/E1391-Installation%20Instruction.doc?dl=0
Package List:

1 * DIY Cover for DSO138
1 * DSO138 soldered Oscilloscope Kit
1 * Probe
3 * User Manual(English)
