Report item
Item specifics
  • Model Number: MKS BASE
  • cards: 3d diy starter kit
  • smart controller: marlin breadboard
  • electronic diy kit: mega 2560/ramps1.4
  • integrated circuit: 3d devices
  • 3d printing material : electronic stock
Product Description





3D components integrated motherboard BIQU BASE V1.0 MKS BASEV1.5 compatible Mega2560&RAMPS1.4 controller RepRap Mendel Prusa i3

















1* BIQ U BASE V1.0+USB

Acrylic Case

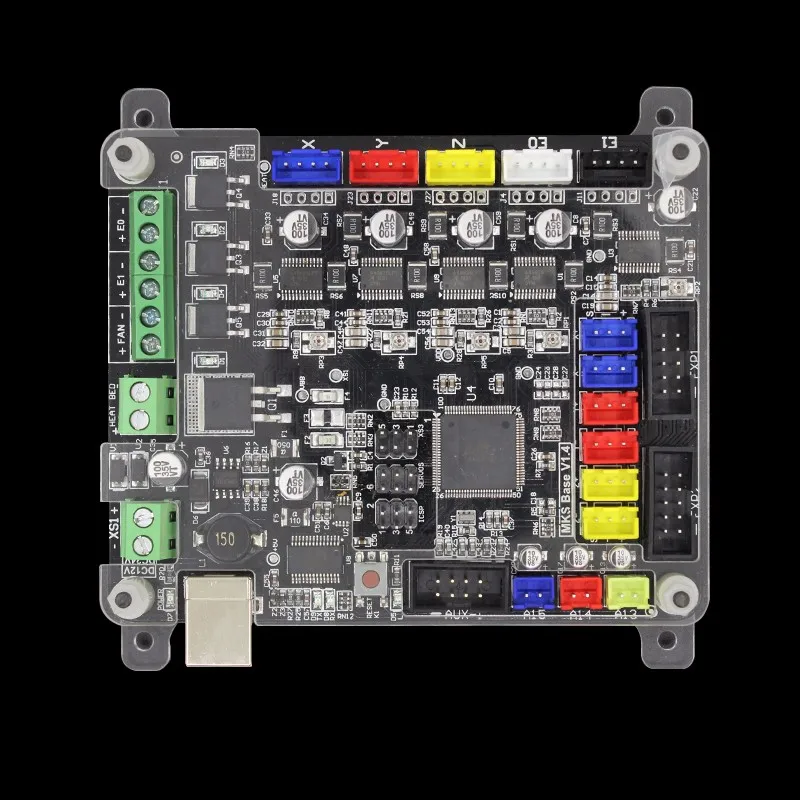

BIQU BASE V1.0 is a motherboard which is improved base on MKS BASE.

Overview
MKS BASE is a feature rich all-in-one electronics solution for Reprap and other CNC devices. It features an onboard ATmega2560. Its five motor outputs are powered by A4982 stepper drivers. The board can use the same firmware as Ramps1.4. MKS Base is designed to be flexible in the user\'s power source availability, allowing any power supply from 12V-24V.
MKS-BASE is suitable for 3D printer manufacturers on batch production, and being used as main control board. Relative to the Ramps1.4, it adds E1 heating output.
 MKS-BASE  is  suitable for dual-Extruder machine.


Features­
1.Arduino MEGA compatible Atmega2560 and FT232 processors are compatible with all RAMPS class firmware
2.Firmware can use the same configuration as ramps1.4
3.Easy DISPLAY + SD-CARD connector,RepRapDiscount SmartController compatible pin header on board
4.Easy connect MKS TFT on AUX-1
5.3x temperature ADC connectors for thermistors
6.up to 5 motor driver with A4982
7.4x PWM capable power mosfet outputs with voltage selector for MainPower.(Bed,Extruder0,Extruder1, Fans)
8.4 layers PCB, optimize heat dissipation.
9.6x end stop connectors with power supply Xmin/Xmax/Ymin/Ymax/Zmin/Zmax
10.Recoverable fuse for short-circuit protection.

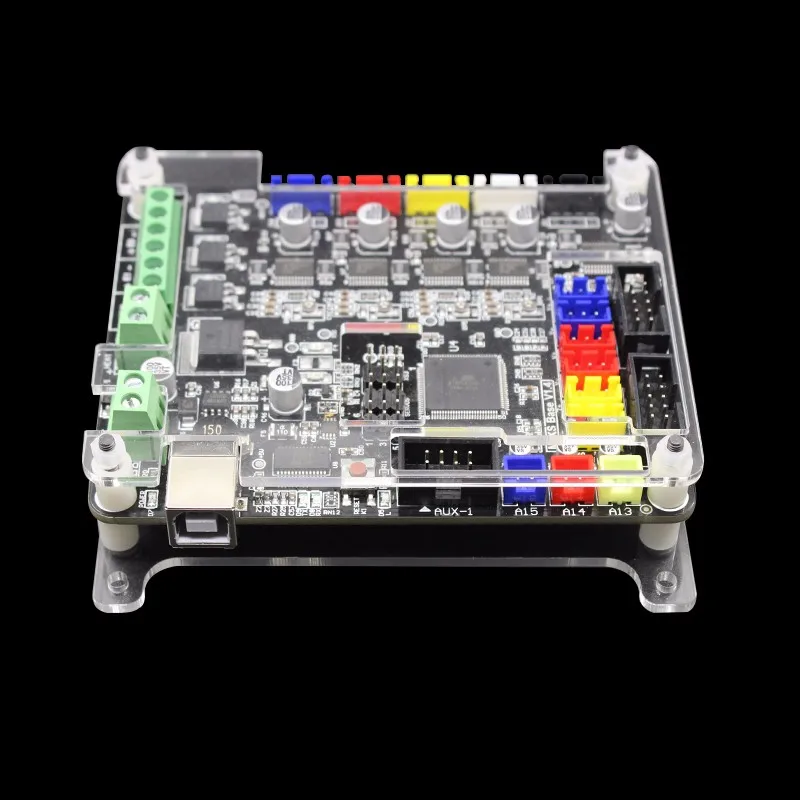

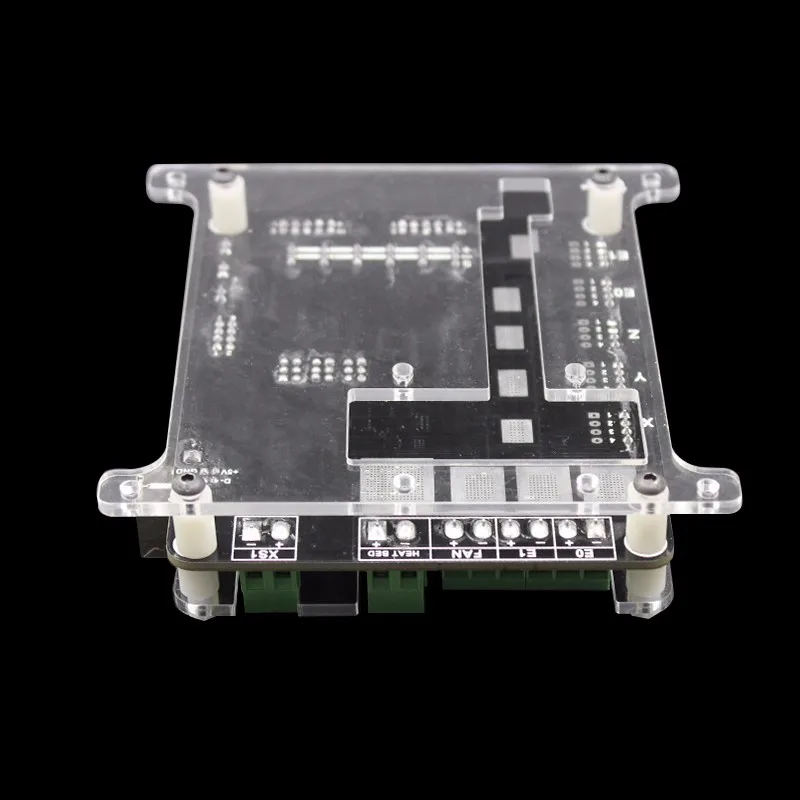

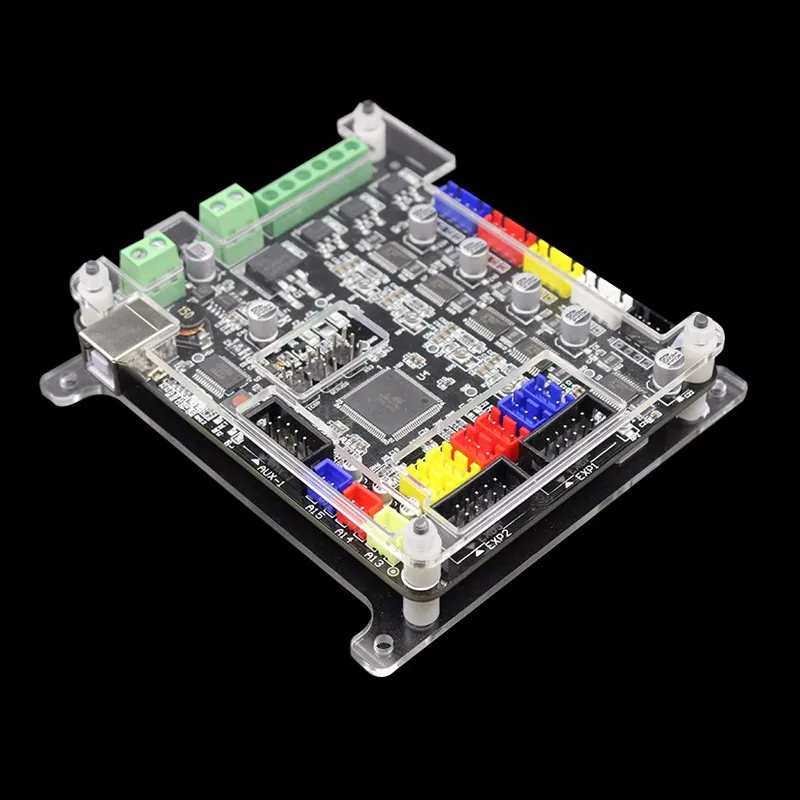

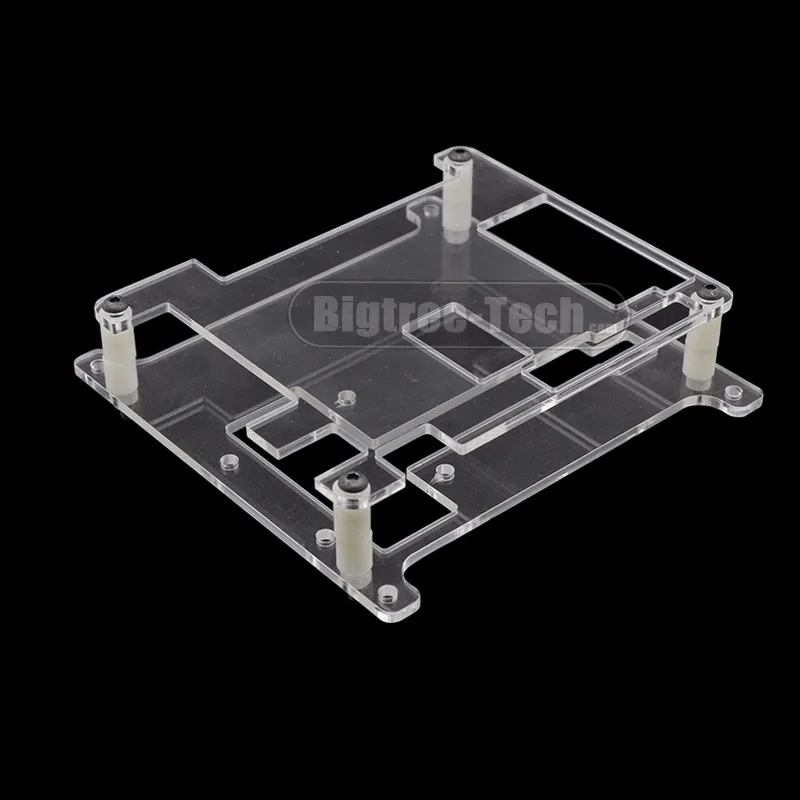

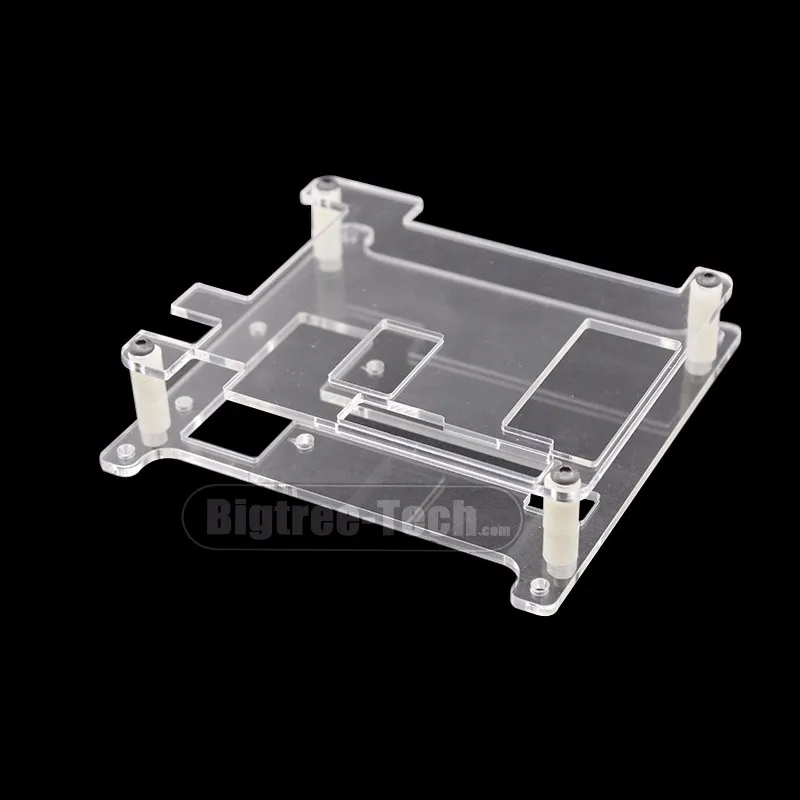

Notices: In order to protect well the BASE V1.0 , we are going to send Acrylic Case as a gift to you, hope you will satisfied with them  .








1 2 3 4 5










&



1 5







































































Packaging Details
  • Unit Type: piece
  • Package Weight: 0.1kg (0.22lb.)
  • Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
