  • Brand Name: DFRobot
  • Application: DIY Electronic
Product Description

Italian original High Quality UNO R3 for Arduino UNO R3, ATmega328P ATmega16U2 16Mhz 32k Flash Memory 6 PWM outputs 6 Analog Inputs
Introduction
  • This is the new Uno R3 for Arduino. In addition to all the features of the previous board, the Uno now uses an ATmega16U2 instead of the 8U2 found on the Uno (or the FTDI found on previous generations). This allows for faster transfer rates and more memory. No drivers needed for Linux or Mac (inf file for Windows is needed and included in the IDE), and the ability to have the Uno show up as a keyboard, mouse, joystick, etc.
  • The Uno R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Uno R3 works with all existing shields but can adapt to new shields which use these additional pins.
  • The board for Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements the Processing/Wiring language. It can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).
  • Warnings: The Uno R3 requires the 1.0 drivers folder in order to install properly on some computers. We have tested and confirmed that the R3 can be programmed in older versions of the IDE. However, the first time using the R3 on a new computer, you will need to have 1.0 installed on that machine. If you are interested in reading more about the changes to the IDE, check out the official 1.0 Release notes!
Photos

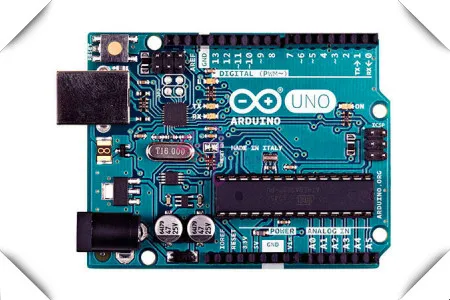

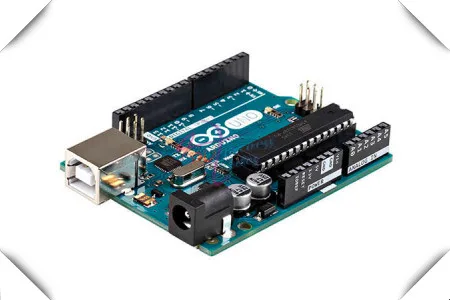

sui_001sui_3sui_4sui_5
Specification
  • ATmega328 microcontroller
  • Input voltage 7-12V
  • 14 Digital I/O Pins (6 PWM outputs)
  • 6 Analog Inputs
  • 32k Flash Memory
  • 16Mhz Clock Speed
Shipping List
  • Uno R3 for Arduino x1
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.18kg (0.40lb.)
  • Package Size: 12cm x 10cm x 5cm (4.72in x 3.94in x 1.97in)
