Item specifics
  • Brand Name: DFRobot
  • Application: for Arduino
  • Supply Voltage: 2.7~3.6 V
Product Description
DFRduino GPS Shield Module ublox LEA-6H, u-blox 6 position engine GNSS AEC-Q100 chips A-GPS with AssistNow Supports GLONASS Galileo compatible with LEA-5/LEA-4 For Arduino
Introduction
  • DFRduino GPS Shield for Arduino has now been updated to ublox LEA-6H.
  • The LEA-6H is a high performance stand-alone GPS and GALILEO receiver module designed to allow easy, straightforward migration from its LEA-4 predecessors. It features u-blox\\\\\\\' KickStart weak signal acquisition technology, as well as flexible connectivity options. The LEA-6H comes with built-in Flash memory that enables firmware updates and the storage of specific configuration settings in a non-volatile RAM. The built-in antenna supervisor supports external and active antennas, such as u-blox\\\\\\\' ANN high performance GPS antenna.
  • u-blox KickStart provides accelerated startup at weak signals, and our featured SuperSense Indoor GPS is capable of tracking and acquiring even extremely weak signals. This makes the LEA-6H suitable for solutions using small or covert antennas.
  • Suggestion: Customers can buy TEL0042 Built-in GPS Antenna to equip this GPS shield and maximize its power.

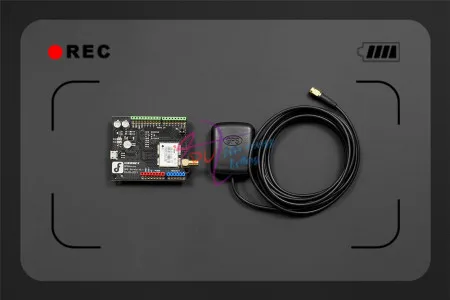

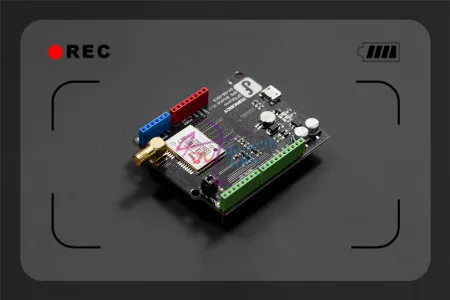

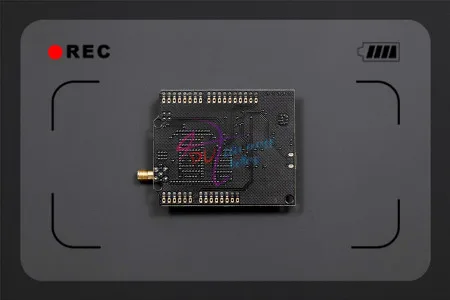

Photos
sui_004sui_003sui_001
Specification
  • Power supply: 2.7V3.6V
  • Power consumption: 117 mW 3.0V (continuous)
  • 33 mW 3.0V Power Save Mode (1Hz)
  • Backup power: 1.4V 3.6V, 22uA
  • u-blox 6 position engine
  • Navigate down to 162 dBm and 148 dBm coldstart
  • Faster acquisition with AssistNow Autonomous
  • Configurable power management
  • Hybrid GPS/SBAS engine (WAAS, EGNOS, MSAS)
  • Anti-jamming technology
  • A-GPS: AssistNow Online and AssistNow Offline services, OMA SUPL compliant
  • Supports GLONASS, Galileo ready (LEA-6H)
  • Backward compatible (hardware and firmware); easy migration from LEA-5 or LEA-4 families
  • Based on GNSS chips qualified according to AEC-Q100
  • Manufactured in ISO/TS 16949 certified sites
  • LCC package for reliable and cost effective manufacturing
  • Operating temperature range: 40 to 85
  • 1 UART, 1 USB and 1 DDC (I2C compliant) interface
  • Navigation update rate up to 5 Hz (ROM version), 2 Hz (Flash)
  • Accuracy
  • Position: 2.5 m CEP
  • SBAS: 2.0 m CEP
Shipping List
  • GPS Shield x 1
  • Passive Attena x 1
